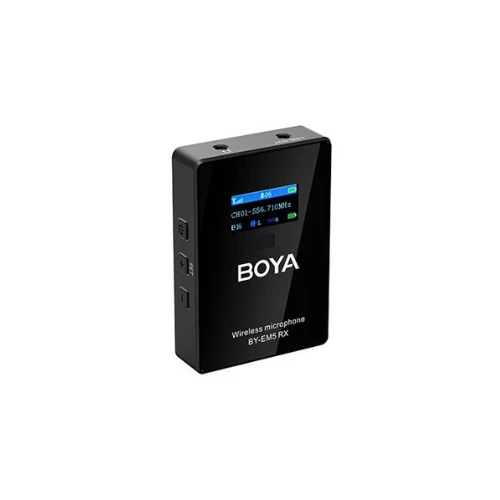

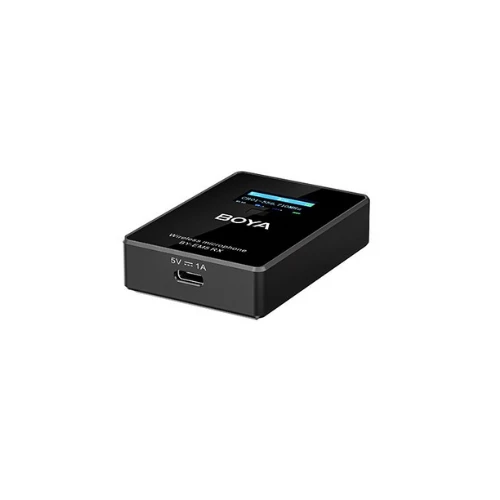

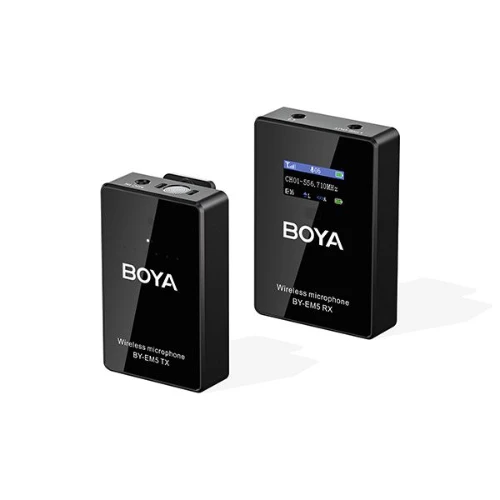

Boya BY-EM5-K1 UHF Wireless Microphone

Specifications

• Frequency Band: UHF band
• Modulation: FM
• Antenna: Built-in FPC antenna
• Operating Range: Up to 50m (without obstacles)
• RF Output Power: 10mW
• Distortion: <1%@1kHz
• Frequency Response: 20Hz-8kHz
• Frequency Range: 556MHz-596MHz
• Signal-to-Noise Ratio: > 84dB
• Audio Output: 3.5mm TRS analog output
• Monitoring Port: 3.5mm headphone port
• Charging Port: USB-C (DC 5V)
• Power Requirements: Built-in lithium-ion battery
• Battery Capacity: 1000mAh
• Battery Life: Approx. 7 hours
• Charging Time: Approx. 3 hours
• Weight: 50g
• Dimensions: 45.5mm x 16.5mm x 66mm
• Operating Temperature: 0℃ to +50℃
• Storage Temperature: -10℃ to +50℃
• 7 Days Warranty (If there are any Manufacturing Defects)

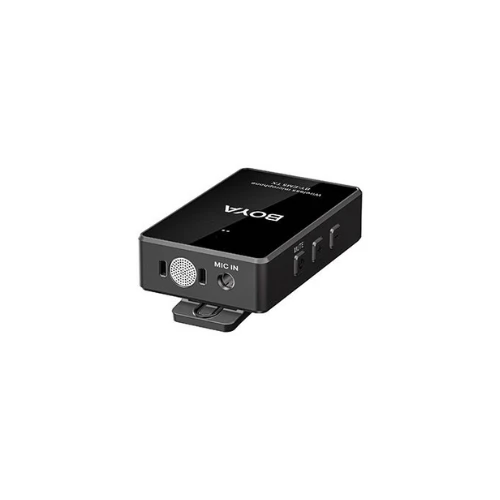

Transmitter

• Frequency Band: UHF band
• Modulation: FM
• Polar Pattern: Omnidirectional
• Antenna: Built-in FPC antenna
• Operating Range: Up to 50m (without obstacles)
• RF Output Power: 10mW
• Distortion: <1%@1kHz
• Frequency Response: 20Hz-8kHz
• Frequency Range: 556MHz-596MHz
• Sensitivity:
  • Lavalier microphone: -42dB±2 (1V/Pa)
  • Built-in microphone: -30dB±2 (1V/Pa)
• Signal-to-Noise Ratio: > 84dB
• Audio Input: Built-in microphone / Lavalier microphone
• Charging Port: USB-C (DC 5V)
• Power Requirements: Built-in lithium-ion battery
• Battery Capacity: 550mAh
• Battery Life: Approx. 4 hours
• Charging Time: Approx. 3 hours
• Weight: 33g
• Dimensions: 37.5mm x 14.8mm x 60mm
• Operating Temperature: 0℃ to +50℃
• Storage Temperature: -10℃ to +50℃

Packing List

• BY-EM5 TX Transmitter x1
• BY-EM5 RX Receiver x1
• Lavalier Microphone x1
• Fur Windshield x1
• USB-A to USB-C Cable x2
• 3.5mm TRS to TRS Output Cable for Cameras x1
• 3.5mm TRS to TRRS Output Cable for Smartphones x1
